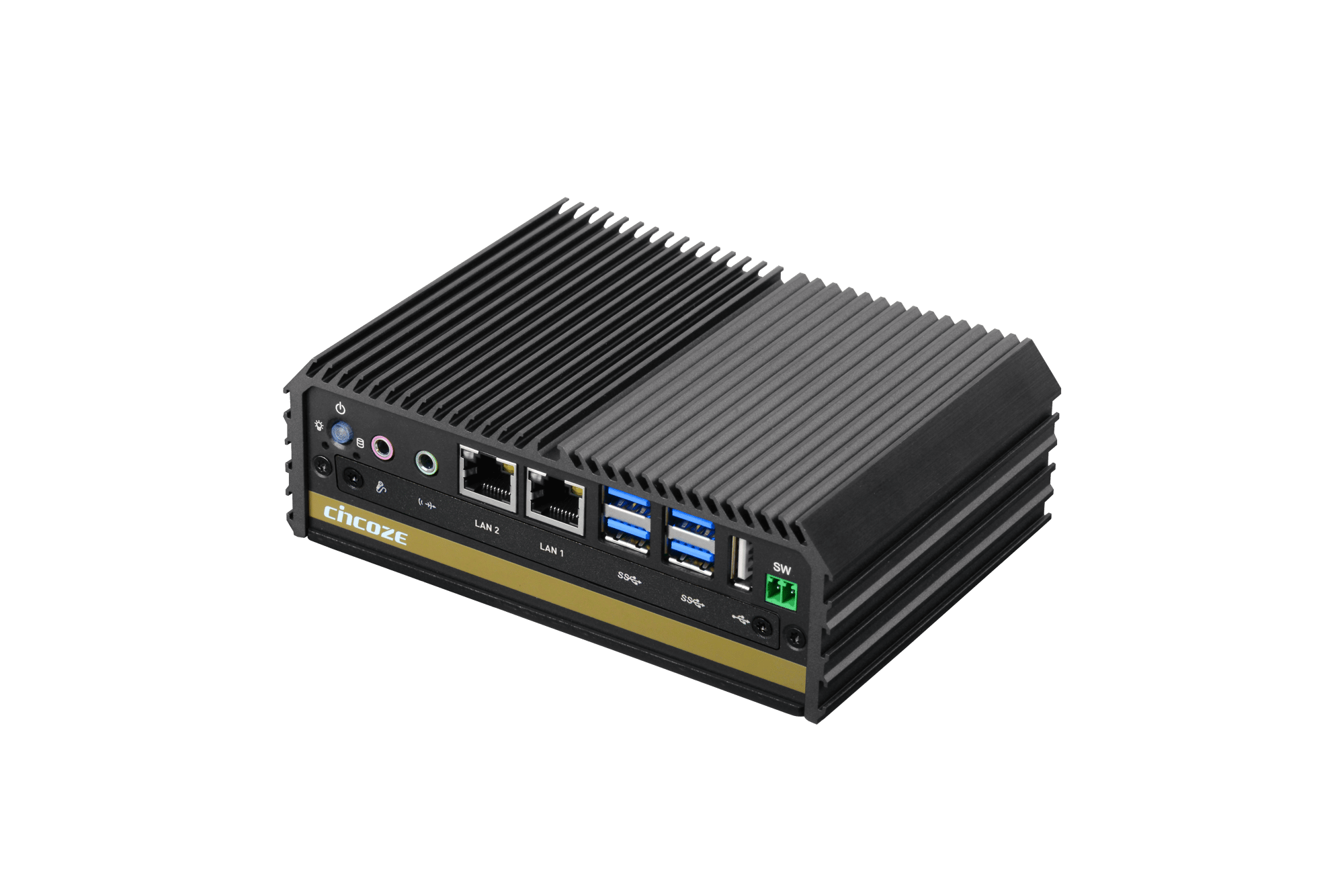

Elevate Industrial Efficiency with the Cincoze DA-1100 Fanless Mini PC
Compact, Rugged, and Power-Efficient - The Ultimate Solution for Industrial Computing
- Pentium® N4200 / Celeron® N3350
- Ultra Compact (150 x 105 x 52.3 mm)
- 2x Full Size Mini-PCIe, 1x SIM Socket, PoE+
- Wide operating temperature range (-40–70℃)
- Shock and vibration-resistant
- Side Mount / Wall Mount / DIN Rail Mount
- UL, cUL, CB, IEC/EN62368-1
Get a Quote

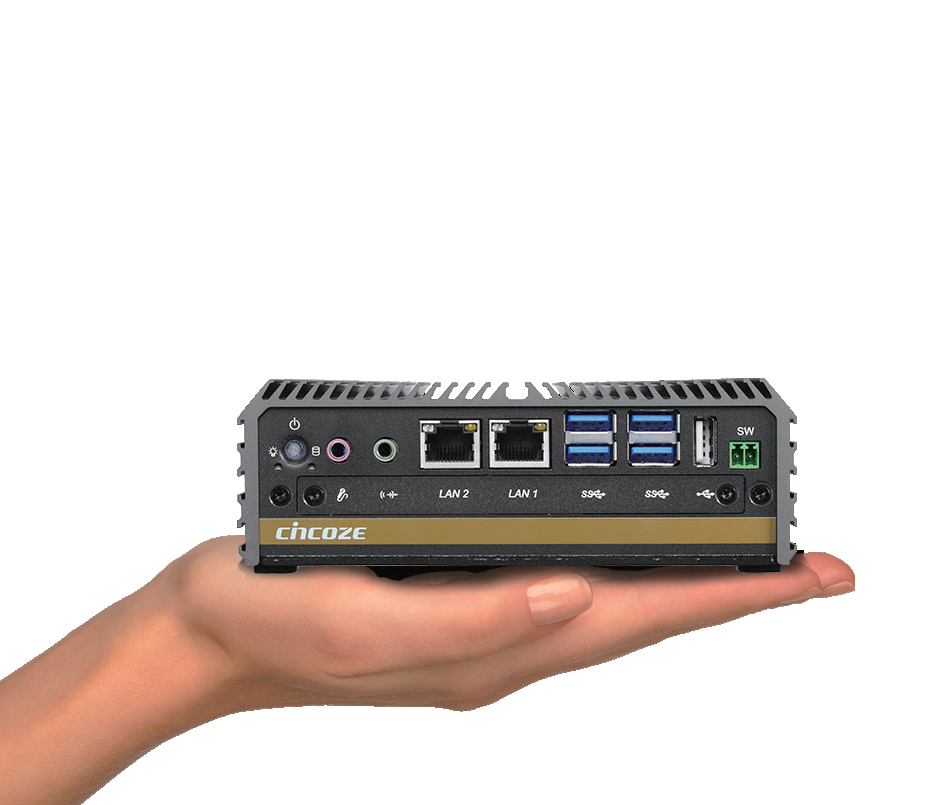

Ultra Compact & Powerful
The DA-1100 Fanless Industrial Mini PC, powered by Intel Apollo Lake SoC, offers exceptional performance in a compact, rugged design. Perfect for space-limited industrial environments, it's an ideal fanless, high-efficiency mini PC.
Triple Displays
DA-1100's enhanced graphics support three displays simultaneously, including 4K/2K UHD. Expandable with a CMI module for additional VGA, DisplayPort, HDMI, or DVI-D output, it's a top choice for multi-display industrial applications.
Power over Ethernet
With optional Cincoze CFM, the DA-1100 Rugged Mini PC supports PoE+, providing up to 25.5W per port. This feature is key for streamlined setups in machine vision and video surveillance applications.

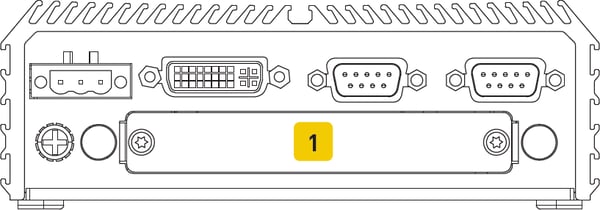

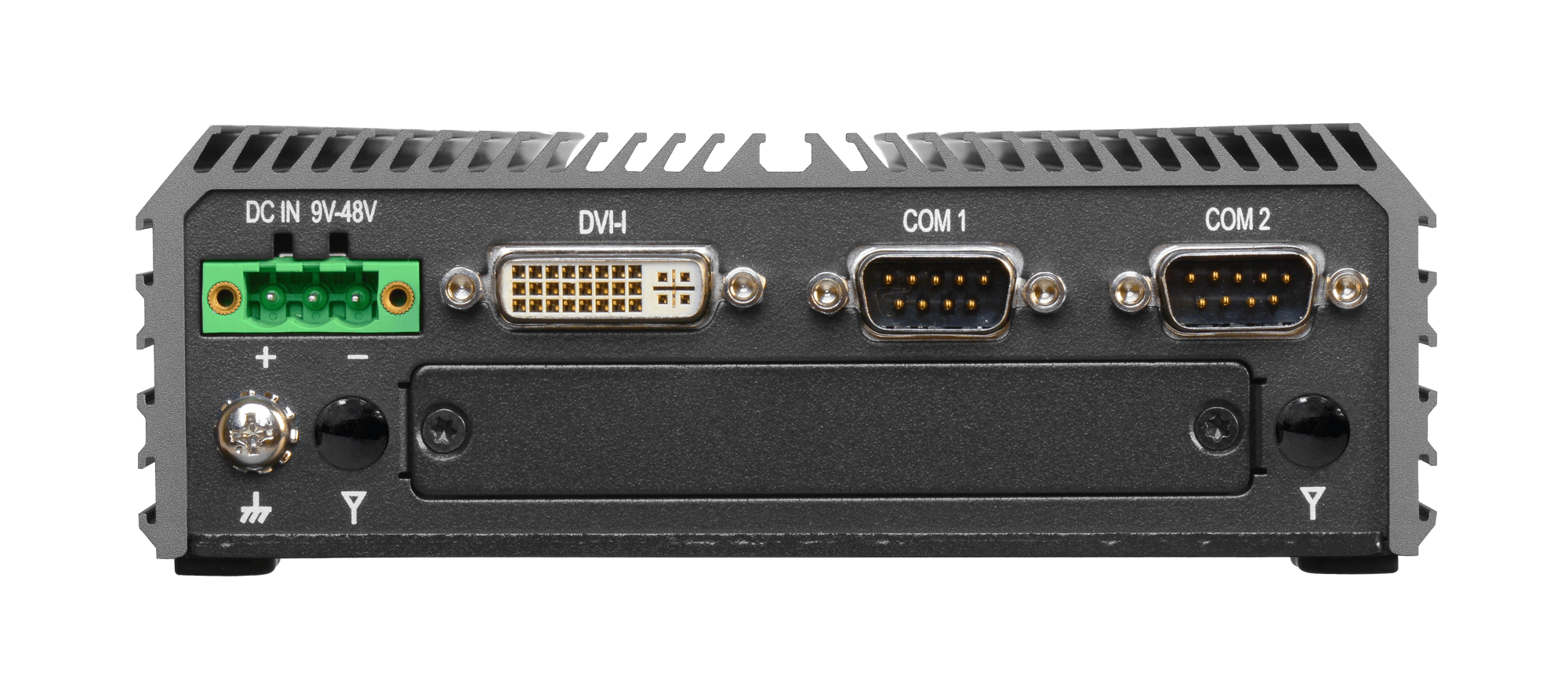

Customize Connectivity with Modular I/O
Tailor Your DA-1100 Industrial PC to Meet Specific Needs with Versatile I/O Modules
RS232/422/485
8x Optical Isolated DIO
DisplayPort
DVI-D
LPT & PS/2
VGA
HDMI
GbE LAN
Technical Specifications
| Processor System | CPU | • Onboard Intel® Pentium® N4200 Quad Core Processor, up to 2.50 GHz • Onboard Intel® Celeron® N3350 Dual Core Processor, up to 2.40 GHz |
| BIOS | AMI BIOS, 8MB SPI Flash ROM built on board | |
| Memory | Technology | DDR3L 1333/1600/1866 MHz (un-buffered and non-ECC) |
| Max. Capacity | 8 GB | |
| Socket | 1x 204-Pin SO-DIMM | |
| Display | Integrated Graphics | • Integrated Intel® HD Graphics 505 (Pentium® N4200) • Integrated Intel® HD Graphics 500 ( Celeron® N3350) |
| Triple Display Supported | Yes (DVI-D + VGA from DVI-I, one output from optional CMI module) | |
| Audio | Codec | Realtek ALC888-GR |
| I/O Ports | DVI-I | 1 (1920 x 1080 @60Hz) |
| GbE LAN | 2 (RJ45, Intel® I210 Supports WoL, Teaming, Jumbo Frame & PXE) | |
| USB | 4x 5Gbps USB 3.2 Gen1, Type A 1x 480Mbps USB 2.0, Type A |
|
| COM Port | 2 (DB9, RS-232/RS-422/RS-485 with Auto Flow Control) | |
| Line-out | 1 | |
| Mic-in | 1 | |
| ATX Power On/Off Button | 1 | |
| AT/ATX Mode Switch | 1 | |
| Clear CMOS Switch | 1 | |
| Remote Power On/Off Connector | 1 | |
| Storage | SATA Drive Bay | 1x 2.5" HDD/SSD or 1x Half-Slim SSD (SATA 3.0) |
| mSATA | 1 (SATA 3.0, Shared by Mini-PCIe Socket) | |
| Expansion | Mini-PCIe Socket | 2 (Full-size) |
| SIM Socket | 1 | |
| Control Function Module (CFM) Interface | 1 | |
| Combined Multiple I/O (CMI) Interface | 1 | |
| Antenna Holes | 2 | |
| Other Functions | Watchdog Timer | Software Programmable Supports 256 Levels System Reset |
| Supports Instant Reboot Technology | 0.2 sec | |
| Power Requirement |
Power Type | AT / ATX |
| Power Supply Voltage | 9~48VDC | |
| Power Connector | 1x 3-pin Terminal Block | |
| Power Adaptor | Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W (Optional) | |
| Physical | Dimension (WxDxH) | 150 x 105 x 52.3 mm |
| Weight | 0.87kg | |
| Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA (Optional DIN-Rail/Side Mounting) | |
| Unibody Chassis | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Cable-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover |
|
| Over Current Protection | 20A | |
| Operating System | Windows | Windows® 10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | -40°C to 70°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 |
|
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 |
|
| MTBF | 632,353 Hours | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A |
|
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz |
|
| Safety | UL, cUL, CB, IEC/EN 62368-1 |
